Production MannTek, Sweden
ELAFLEX Hamburg
Nozzle stock, ZVA Slimline 2 GR
L.P. Gas rail tanker
loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange

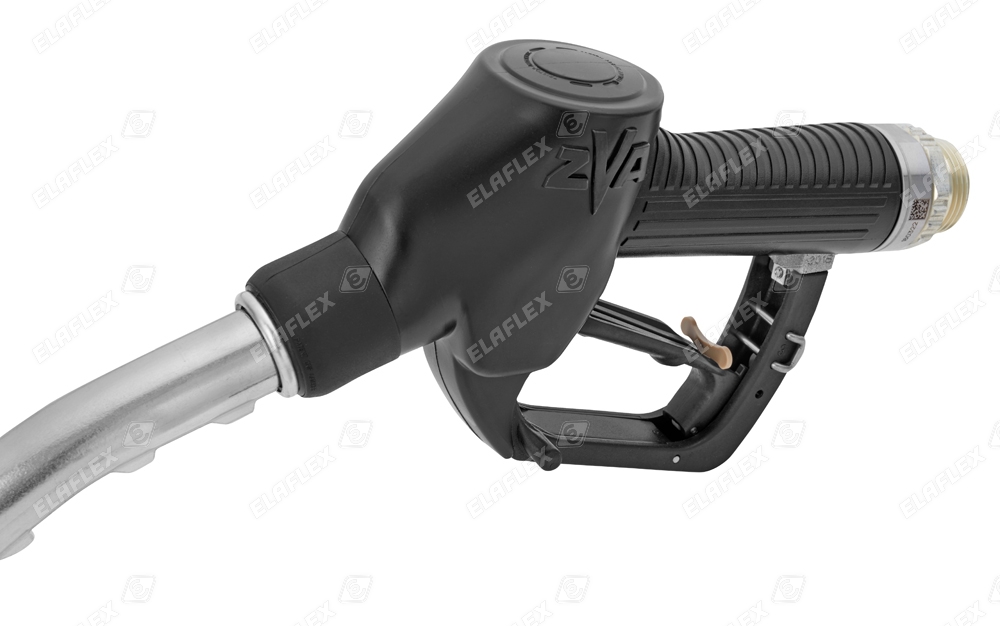

ZVA Slimline 2, black, guard 3 - side view
MannTek DGC DryGasCouplings
with integrated SBC Safety Breakaway Coupling
ERV-R
"Red Band" Rubber Expansion Joints with limiters / pump station
ERV-GS; ERV-G
Rubber Expansion Joints - use in ship engine room
Section view ERV-G Rubber Expansion Joint
Oasis SV 108 Sandwich Valves 1" on CNG trailer
VB 80 SSE
TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
Hose assembly for petrol stations
Standard hose SL 16
ELAFLEX refuelling equipment:
Quality is in the detail.
Rubber Expansion Joint ERV-CR 80.16
CR Expansion Joints for cold and warm water, swimming pool water, sea water, waste water (weakly sour or alkaline) also oil containing, cooling water with protective oils against corrosion, lubricating oil, grease and air, compressed air. Temperature range (depending on medium) - 25° C up to + 90° C, temporarily up to + 100° C. Electrically non-conductive.
Butapal LPG 10
L.P.Gas hose DN 10
ELAFLEX Tanktechnik, Production Plettenberg / Germany
Sample inspection
Slimline 21 hose assembly with non reattacheable female coupling M 21-1" NR
Slimline quality dispensing hose for the forecourt
Aircraft refuelling hoses
VHD-C NEON, SFC TW, HD-C NEON, MC SS Al, PHD-F, VC SS Al
Check Valve 350 bar
for Hydrogen
Slimline 21 red
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.
Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion
Picture courtesy of Macoil International, Gibraltar
ELAFLEX refuelling equipment:
Quality is in the detail.
FWS 50 PTFE
Composite hose with PTFE lining
Universal hoses UTL with DDC Dry Disconnect Couplings
UTS hose assembly with AMKC 25 SS/SS
'Camlock' stainless steel coupler to EN 14420 - 7 with hose tail and Spannloc stainless steel clamps
Hose assemblies for petroleum based procucts
LTW 75, VX 80-3, MannTek DDC-M80-3Ms & TW 63, SFX 63 TW
From Terminal To Nozzle
Elaflex refuelling equipment
LNG Refuelling
LNG Nozzle 'N-LNG'
ROTEX 80.16
Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative
HD-C, ZVF 50, Refueller
Aircraft refueller, overwing refuelling JET
