1567 images found




Terminal / gantry: 'Polypal Oil' hose assemblies for bottom loading of road tankers

Terminal / gantry: 'Polypal Oil' hose assemblies for bottom loading of road tankers

Lining UPE - resistant to all petrochemical media, also with high content of aromatics or other aggressive additives; cover CR - oil resistant

ContiTech Production hose

ContiTech Production hose

Intermediate layer

Hoses for Liquefied Petroleum Gas / Autogas

Hoses for Liquefied Petroleum Gas / Autogas

LPG 13, LPG 16 black/orange, LPG 19

Camlock Cam Locking Coupling AMK 50 Ms (brass)

Camlock Cam Locking Coupling AMK 50 Ms (brass)

SMX 50-2"

SMX 50-2"

Female hose coupling of steel with Spannfix clamps

ELAPHARM and Tecnopal hose assemblies

ELAPHARM and Tecnopal hose assemblies

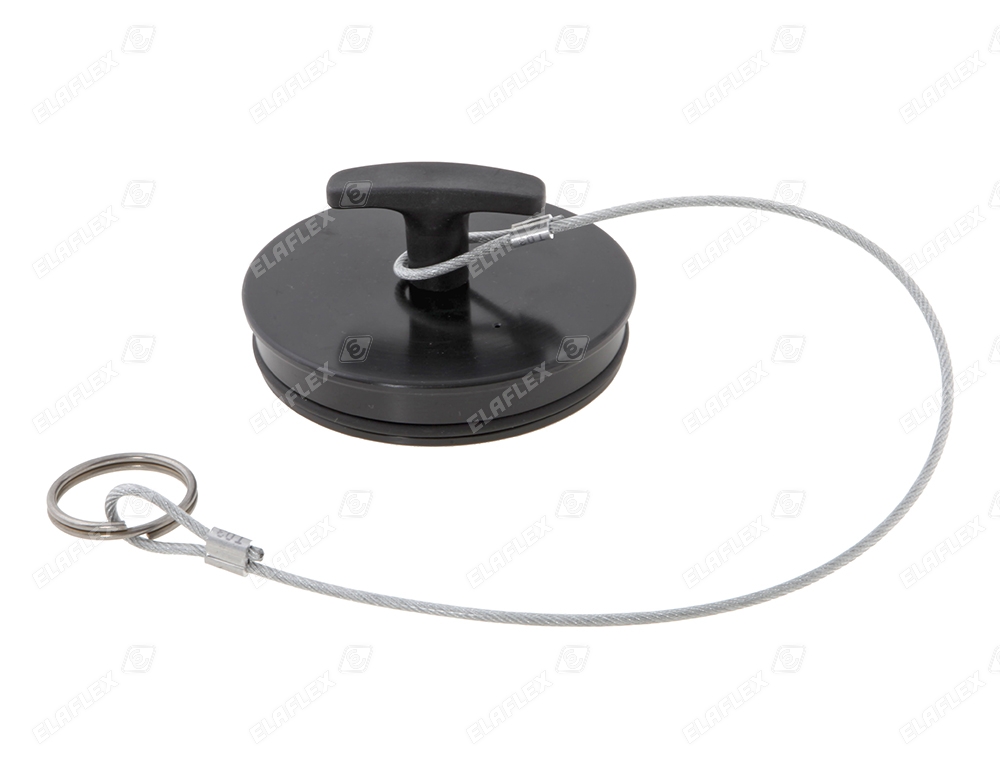

DDC-K 2 1/2" PE

DDC-K 2 1/2" PE

Dust cap for DDC-V Dry Disconnect Couplings; • Meets the ADR requirements• Enhanced safety and protects the environment• Easy, user friendly operation

ZVA Slimline 2 without scuffguard: body markings

ZVA Slimline 2 without scuffguard: body markings

Rail tanker unloading of petroleum based products

Rail tanker unloading of petroleum based products

with FWS 80 PP St/St composite hoses and MannTek Dry Disconnect Couplings

Elaflex seals

Elaflex seals

Oasis Fill Valves at CNG service station

Oasis Fill Valves at CNG service station

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

ZVA Slimline 2 GR, black, guard 3 - side view B

ZVA Slimline 2 GR, black, guard 3 - side view B

ROTEX 80.16

ROTEX 80.16

Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative

SX 75

SX 75

Spannfix clamp DN 75 of aluminium

KWZ x VK 80

KWZ x VK 80

Rail car adapter with TW male coupling

Vergleich visibility aircraft refuelling hoses - below: "Yellow Band" standard, top: "NEON" new version with reflecting bands

Vergleich visibility aircraft refuelling hoses - below: "Yellow Band" standard, top: "NEON" new version with reflecting bands

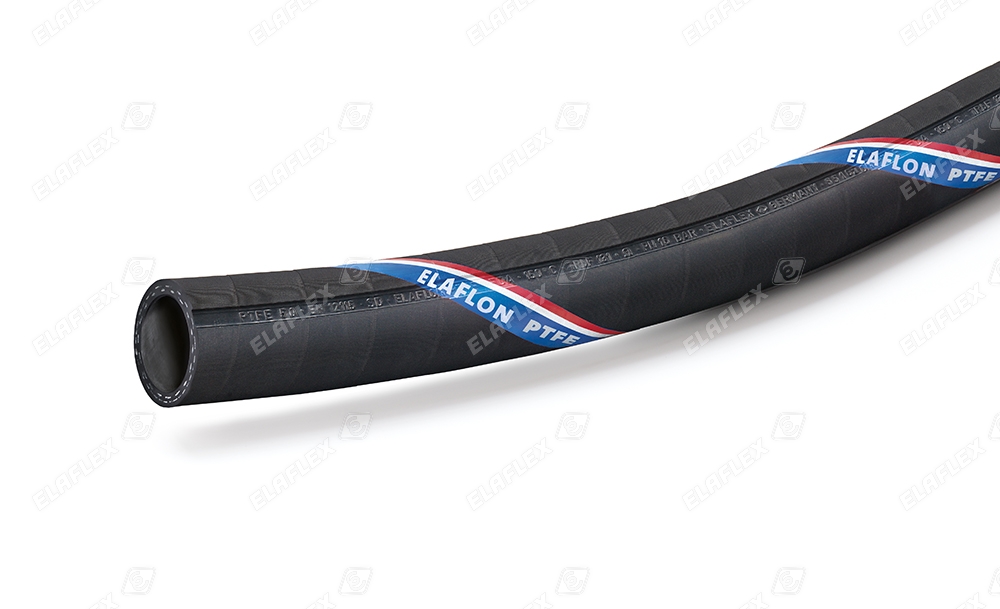

Elaflon PTFE 50

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

ZVA Slimline 2 GR, ZVA Slimline 2

ZVA Slimline 2 GR, ZVA Slimline 2

Petrol station Germany

LPG Autogas Adapter (filler inlet) DISH

LPG Autogas Adapter (filler inlet) DISH

"Italian" claw coupling

Quality in the detail: valve assembly of a ZVA Slimline 2 petrol station nozzle

Quality in the detail: valve assembly of a ZVA Slimline 2 petrol station nozzle

Lube oil loading of a ship

Lube oil loading of a ship

TW 75 hose assembly, TW couplings

Rubber Expansion Joint ERV-GR 80.16

Rubber Expansion Joint ERV-GR 80.16

GREEN BAND expansion joints for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.

KR 50 - 21/2"

KR 50 - 21/2"

Filling of Heating Oil Tanks: New Adapter for difficult-to-reach house connectors

Slimline 16 yellow

Slimline 16 yellow

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

HD 100 C, HD 10 sensing hose

HD 100 C, HD 10 sensing hose

Aircraft Dispenser with DN 100 hose (spiralised marking) and a sensor hose to control the hydrant system.

Composite hose Danoil 7GG, DDC-M Dry Disconnect Coupling, airport depot

Composite hose Danoil 7GG, DDC-M Dry Disconnect Coupling, airport depot

ZVF 50 JET overwing refuelling

ZVF 50 JET overwing refuelling

LeverAssist hold-open aid for comfortable refuelling

Production MannTek, Sweden

Production MannTek, Sweden

Oasis SV Sandwich Valves 100series, for CNG

Oasis SV Sandwich Valves 100series, for CNG
