1720 images found

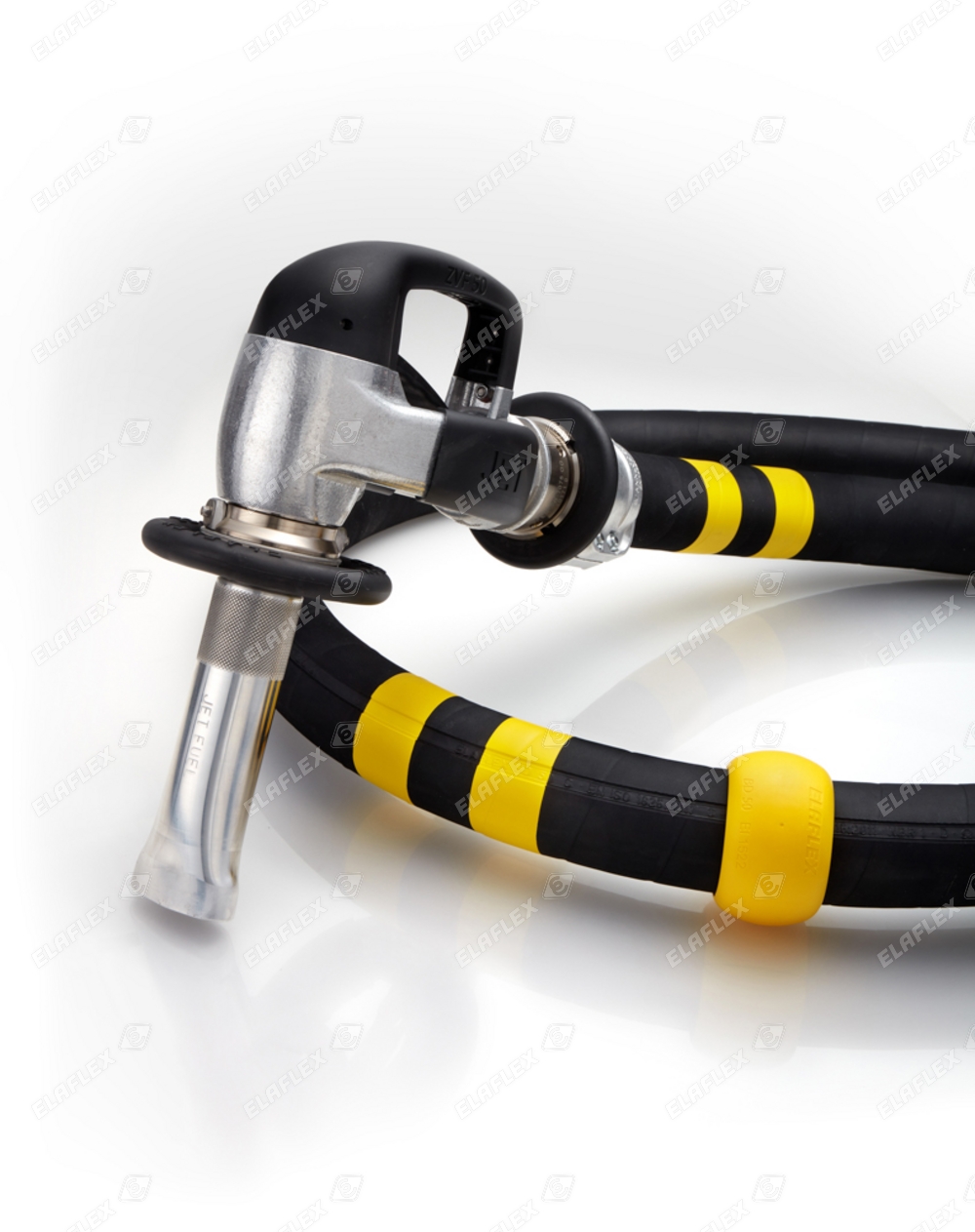

MannTek DCC-V & DCC-M Dry Cryogenic Couplings

MannTek DCC-V & DCC-M Dry Cryogenic Couplings

Urea solution filling of a car: ZVA LV for AdBlue®

Urea solution filling of a car: ZVA LV for AdBlue®

ZVA Slimline 2, guard no. 4, Sight Glass SG 1 Al, Slimline hose assembly

ZVA Slimline 2, guard no. 4, Sight Glass SG 1 Al, Slimline hose assembly

Marine bunkering and cargo hoses

Marine bunkering and cargo hoses

ship to shore bunkering

ZVA Slimline 2 with reduced spout and Slimline hose

ZVA Slimline 2 with reduced spout and Slimline hose

here: for gasoline, use in countries without vapour recovery regulation

ElaSil® Silicone hose assemblies

ElaSil® Silicone hose assemblies

Connecting Triclamp

Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies

Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies

Chemical manifold

Chemical manifold

FEP 5O, MannTek DDC-M 5O SS

Connection road tanker to trailer: TW hose assembly, DDC Dry Disconnect Coupling

Connection road tanker to trailer: TW hose assembly, DDC Dry Disconnect Coupling

ZVA Slimline 2 GR, black, guard 3 - side view B

ZVA Slimline 2 GR, black, guard 3 - side view B

RS 2 x 78 SS

RS 2 x 78 SS

Reducer Female/Male

GasGuard LPG nozzle GG20DN

GasGuard LPG nozzle GG20DN

With long connector nut to access 'hard to reach' fill points. "DN": suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure : 1,7 cm³.

ZVG 2 Swivel

ZVG 2 Swivel

Easy rotating swivel EA 820

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

IBC

IBC

with CHS chemical hose assembly

FWS 50 PTFE

FWS 50 PTFE

Composite hose with PTFE lining

UTS hose assembly with AMKC 32 SS and AVKC 32 SS

UTS hose assembly with AMKC 32 SS and AVKC 32 SS

'Camlock' stainless steel female and male coupling to EN 14420 - 7 with hose tail and Spannloc clamps

ZVA HV for AdBlue®, SSB 16 SS, SL 16 for AdBlue®, Elafix 40

ZVA HV for AdBlue®, SSB 16 SS, SL 16 for AdBlue®, Elafix 40

Urea solution (DEF, ARLA 32) for trucks: nozzle, Safety Break, hose assembly and adapter for the vehicle AdBlue® filler inlet to avoid misfuellings.

Marine bunkering and cargo hoses

Marine bunkering and cargo hoses

ship to ship bunkering

ERV-G

ERV-G

Pump-tank connection; lateral offset

MB 80 Ms

MB 80 Ms

Dust cap for VK 80, brass

Bunker boat: TW hose assemblies, TW couplings

Bunker boat: TW hose assemblies, TW couplings

Tank container filling coupling: MK 80-32 SS with VB 80 SS

Tank container filling coupling: MK 80-32 SS with VB 80 SS

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

Hose assemblies for LPG

Hose assemblies for LPG

with flange connection, ACME connection, NPT thread

BD 63, HD 63 C

BD 63, HD 63 C

Aircraft refuelling hoses with ELAFLEX Hose Beads 'BD'. Details see Information 7.17

ZVA LV for AdBlue® with EA 075 LV

ZVA LV for AdBlue® with EA 075 LV

Urea solution (DEF, ARLA 32) for Light Vehicles

Hose tube of road tanker for chemicals

Hose tube of road tanker for chemicals

MK-A 80 SS with active safeguard lever ; VB 80 SS dust plug

ELAFLEX Hamburg

ELAFLEX Hamburg

Hose assemblies, endoscope inspection hose

Road tanker Sweden

Road tanker Sweden

large reel with HD hose assembly, DDC-V (Dry Disconnect Coupling, tank unit) and DDC-K (caps)

MK 80 Ms

MK 80 Ms

TW coupler of brass, to EN 144260-6 with 3" female BSP connection
