Drum filling
with CHS chemical hose assembly
Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies

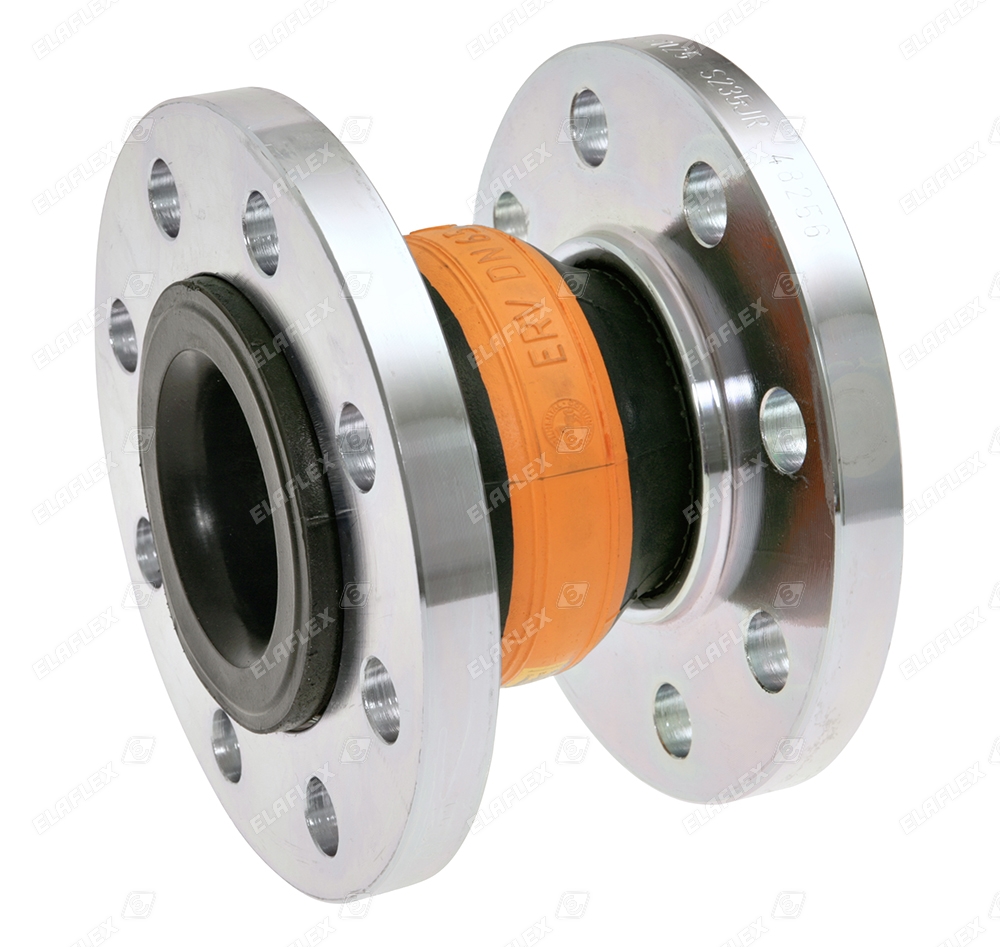

Rubber Expansion Joint ERV-BR 80.16
BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR
ELAFLEX Hamburg
Nozzle stock, ZVA Slimline 2 GR
ELAFLEX Hamburg
Delivery trucks, loading ramps
ELAFLEX Hamburg
Assembling ERV limiters (tie rods) with spherical discs and conical seats
ELAPHARM Type EPH
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
Urea solution filling of a car:
ZVA LV for AdBlue®, Slimline 16 for AdBlue® (blue cover)
ELAFLEX refuelling equipment:
Quality is in the detail.
ERV Rubber Expansion Joints
Picture 5
ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling
Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)
Cabinet of road tanker:
MK 80 with VB 80 ADR SS (plug with pressure relief)
Cabinet of road tanker:
hose tubes, TW hoses, TW couplings
DAC-M 65
MannTek Dry Aviation Coupling
Alternative fuels: DME Dimethyl Ester
DGC Dry Gas Coupling, EFL 16 Fluorline hose assembly
ZVG 2 Swivel
Easy rotating swivel EA 820
Hose Reels group picture
Orange Band L.P. Gas hose type LPG
Premium quality for highest safety and best handling
Cabinet of road tanker:
MK 80-32 TW coupler with bent lever, VB 80 P dust plug
Road tanker hose reel, made by Elaflex Italia
with LPG hose assembly
Dantec Production hose
Composite hoses
LPG terminal: loading with DGC Dry Gas Couplings
For long and heavy aviation refuelling hoses: Hose Beads 'BD' to EI 1522 standard
They notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.
Adapters / couplers for vehicles fighting dangerous goods incidents:
Dry Disconnect Stanag 3756 DDC- M 50 / 65 / 80 SS NOT x VK 50 SS/Vi Hose sided MK coupling can be coupled without tools
Unloading Methanol
with FWS composite hose, DDC Dry Disconnect Coupling
Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion
Picture courtesy of Macoil International, Gibraltar
BD 63 Hose Beads
to EI 1522 standard - notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.
HD-C, airport depot
Underwing couplings with HD-C hoses for bottom loading of aircraft refuellers at airport depot
RS 3/4 x 1 SS
Reducer Female/Male
