VB 80 SSE

TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

Stainless steel couplings with PFA coating, type "...SSE"

Surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

Elapharm

Hose Assemblies for use in the Pharmaceutical and Biotech Industries

Refuelling with ZVA Slimline 2 nozzle

Scuffguard, Product Sleeve and Colour Sleeve in grey special colour

LNG Refuelling

LNG Nozzle 'N-LNG' coupled to fuel, LNG 25 fill hose assembly, bonding cable

For long and heavy aviation refuelling hoses: Hose Beads 'BD' to EI 1522 standard

They notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

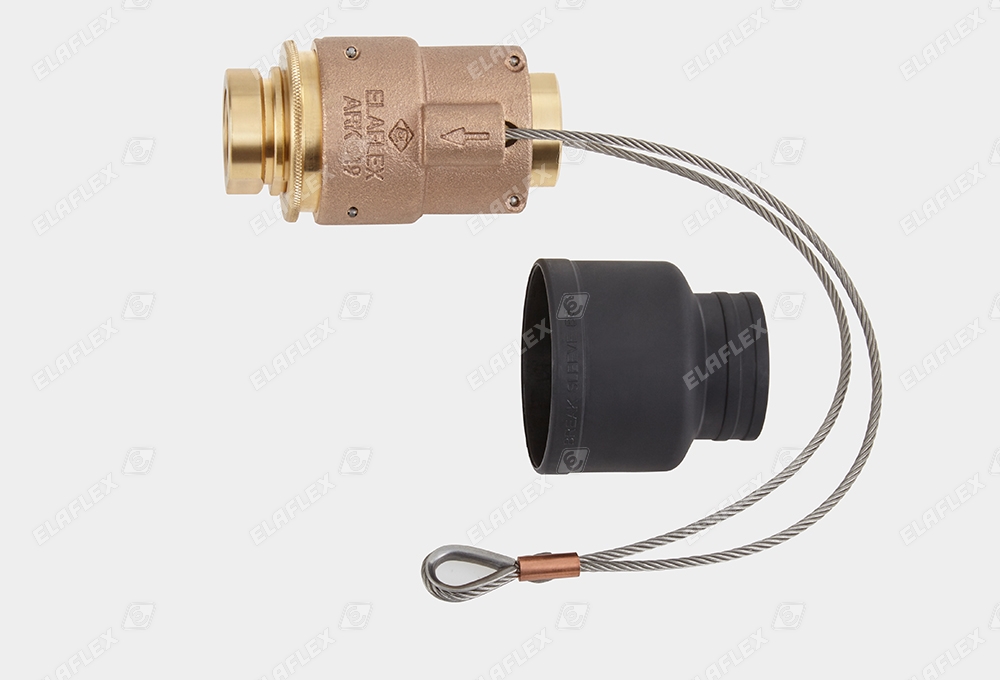

SSB 25 Safety Break: Abriss

M 16-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, green.

ZVG 2 DISH nozzle for L.P. Gas / Autogas, LPG 16 hose assembly

ZVA 25, bus refuelling

KR 50 - 21/2"

Filling of Heating Oil Tanks: New Adapter for difficult-to-reach house connectors

DEC – Dry Evotek Coupling

Dry disconnect coupling for the chemical industry

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Sample inspection

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

LeverAssist reduces the hold-open force by 90%, for comfortable refuelling in countries where latching is not allowed

ELAFLEX Hamburg

Assembling ERV large DN

Hose assembly for L.P. Gas

LPG 50, DGC-M 50 with special handle, adapter DGC 50 x 3 1/4" ACME

Underwing refuelling, HD-C hose assembly

Slimline 21 red

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Elaflex hoses

SD, PTFE, LPG, TW, FEP, SL

Hot stamping process, production TW coupling parts

Forklift refuelling with LPG (L.P. Gas, Autogas)

GasGuard nozzle, LPG 16 hose

PAL hoses for the chemical industry

Elaflon Plus FEP

Embossed hose marking

MC 75-3" SS

Female hose coupling for hoses, stainless steel, with Spannloc clamps

HD-C, airport depot

Underwing couplings with HD-C hoses for bottom loading of aircraft refuellers at airport depot

HD 100 C, hydrant hose

Aircraft dispenser, pit

Rail tanker unloading of petroleum based products

LTW 75 (hose), MKX 75 ('TW' female coupler with Spannfix clamps), Adapter KWZ x VK 80 (51/2" x 'TW'-male coupler)

ELAFLEX Hamburg

Quality in the detail: valve assembly of a ZVA Slimline 2 petrol station nozzle
