Media Library / Images

M 21-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 21 hose, blue.

LNG Refuelling

LNG Nozzle 'N-LNG'

ELAPAC FD flat sealing material

2 or 3 mm thickness, available as coil, standard size seal or in custom shape. An elastic flange seal for tank truck and tank plant construction etc., where rough sealing surfaces require a high adaptability, where flange seals should still have good flexibility to avoid pipe fractures or simple sealing materials because little or no force can be used to tighten the joint.

Rubber Expansion Joint ERV-G 80.16

YELLOW BAND expansion joints suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

AKD-Hy

Coupling seal type AKD for cam locking couplings EN 14420-7. Here: of CSM

Aircraft refuelling

Carter Underwing Nozzle, HD 63 C Neon, ZVF 50 AVGAS, SC 50 Al, HD 50 C, Hose Bead BD 50

ZVA Slimline 2 GR, special type with bellows, black, guard 3 - side view

ZVA AdBlue® HV, SL 16 AdBlue®, Elafix 40 / Elafix 40 Anti-Siphon

Urea solution (DEF, ARLA 32) for trucks: nozzle, hose assembly and adapter (with/without anti-theft protection) for the vehicle AdBlue^® filler inlet to avoid misfuellings.

SC 75

Spannloc clamps DN 75 of aluminium

ZVG 2 ACME nozzle for L.P. Gas / Autogas, LPG 16 hose assembly

ERV-OR

"Orange Band" Rubber Expansion Joints for L.P. Gas, road tanker

ZVA 25 spout with stainless steel tip

Elaflex petrol station nozzles

TW Couplings with Isolation for electronic Cross-Over Prevention Systems

see Information 4.12

Hose assembly for L.P. Gas

LPG 50, DGC-M 50 with special handle, adapter DGC 50 x 3 1/4" ACME

Slimline 19 black

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

Elapharm EPH 38 OHM-G with CF hose tail DIN 32676, free of dead spaces

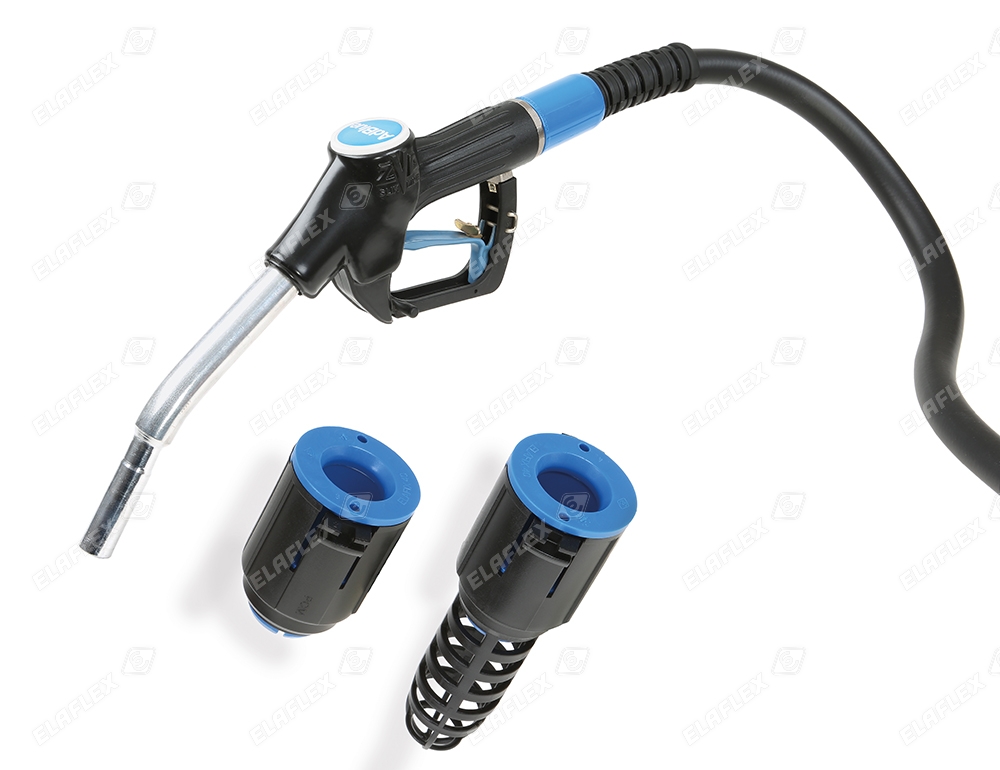

ZVA Slimline 2, guard 3, black scuffguard, blue colour sleeve

Slimline 16 yellow

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

Rail tanker unloading of petroleum based products

Plant side: FWS PP St/St composite hoses, SG 3" Sight Glasses

VB 80 ADR SS with pressure relief

Plug for MK 80
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation

Connection road tanker to trailer: LTW hose assembly, DDC Dry Disconnect Coupling

ZV 19.1

ZV 19 manually operated dispensing nozzle, DN 19 (3/4"), for diesel, fuel, petroleum and oils (also vegetable oils) up to 100 ltr./min.

L.P. Gas rail tanker

loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange

ERV-G Yellow Band rubber expansion joints, manhole of a petrol station

ROTEX 80.16 ZS 2

Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings

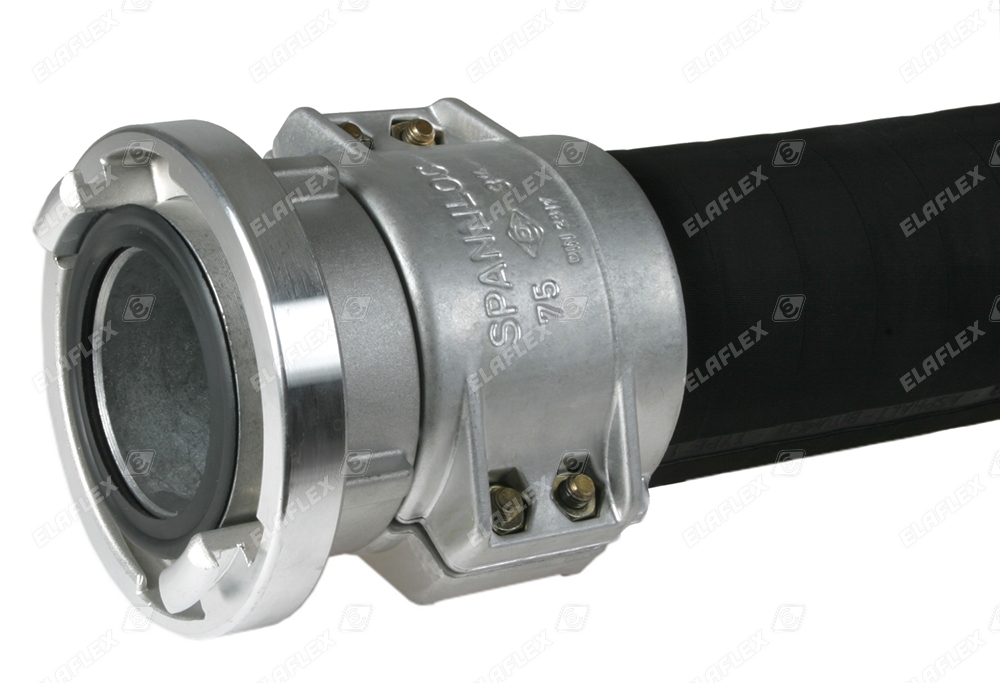

Hose assembly with STKC 75

Storz coupling with Spannloc clamps

ZVA Slimline 2 DSA

DSA: Pressure Controlled Safety Shut-Off

Elaflon Plus FEP hose assemblies, one side open end

up to DN 50 grey cover / from DN 63 black cover

ELAFLEX Hamburg

ERV pressure testing
