1769 images found




ZVA Slimline 2 and ZVA Slimline 2 GR, blue, with Splashguard and Safety Break Couplings

ZVA Slimline 2 and ZVA Slimline 2 GR, blue, with Splashguard and Safety Break Couplings

LNG Refuelling

LNG Refuelling

LNG Nozzle 'N-LNG' coupled to fuel, LNG 25 fill hose assembly

ZVA Slimline 2, guard no. 8D, black scuffguard, red product sleeve, SL 16 hose assembly with red colour sleeve

ZVA Slimline 2, guard no. 8D, black scuffguard, red product sleeve, SL 16 hose assembly with red colour sleeve

DCC Dry Cryogenic Coupling for LNG

DCC Dry Cryogenic Coupling for LNG

Coupling process

Offshore Methane gas production

Offshore Methane gas production

UTS / CHS hose assemblies

Lightweight Gravity Discharge Road Tanker Hose LG 3"

Lightweight Gravity Discharge Road Tanker Hose LG 3"

with VX 75-3" Al LG

Bonding Reel grey, high visibility bonding cable

Bonding Reel grey, high visibility bonding cable

Road tanker hose reel, made by Elaflex Italia

Road tanker hose reel, made by Elaflex Italia

with LPG hose assembly

Oasis FM104 Fuel Manifold on Natural Gas powered vehicle

Oasis FM104 Fuel Manifold on Natural Gas powered vehicle

ERV-GR ... ZS

ERV-GR ... ZS

"Green Band" Rubber Expansion Joints with limiters in chemical pumping system

ELAFLEX Hamburg

ELAFLEX Hamburg

ELAFLEX stock

Elaflon PTFE 50

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Ship bunkering

Ship bunkering

FHD hose assembly, flange connection

Oasis SV108_SV104 Sandwich Valves with handle, for CNG

Oasis SV108_SV104 Sandwich Valves with handle, for CNG

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

and Slimline dispensing hose, yellow

LBS 75 hose assembly for foodstuffs, FDA conform

LBS 75 hose assembly for foodstuffs, FDA conform

with VC 50 SS male coupling, Spannloc clamps

V-St 50 SSE

V-St 50 SSE

Male threaded hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)

Vehicle refuelling with LPG (L.P. Gas, Autogas)

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 EURO (UL listed)

Elaflon Plus FEP

Elaflon Plus FEP

Quality is in the detail.

Tecnopal 38

Tecnopal 38

Chemical hose to EN 12115 for alkalis, acids, solutions, alcohols, polar solvents, acetates, aldehydes, esters, ketones, hot water, hot air (not oily).

Ship bunkering with LNG

Ship bunkering with LNG

towards the end of the bunkering process

ERV-G

ERV-G

Pump station for fuels

KR 50

KR 50

bend with VK 50 x MK 50, 60°, with VB 50 P dust plug

LPG ship-to-ship cargo transfer

LPG ship-to-ship cargo transfer

Danchem PASS composite hose

Oasis FV103 90° Fill Valve with Bus & Truck Nozzle, for CNG

Oasis FV103 90° Fill Valve with Bus & Truck Nozzle, for CNG

Production MannTek, Sweden

Production MannTek, Sweden

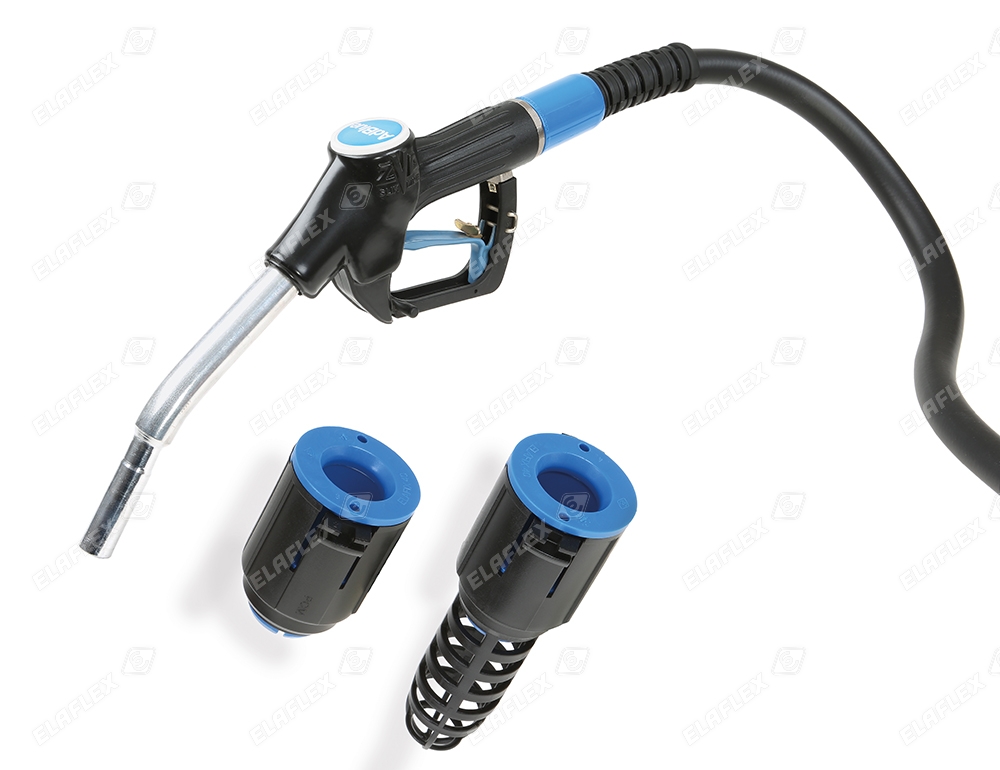

ZVA HV for AdBlue®, SL 16 for AdBlue®, Elafix 40 / Elafix 40 Anti-Siphon

ZVA HV for AdBlue®, SL 16 for AdBlue®, Elafix 40 / Elafix 40 Anti-Siphon

Urea solution (DEF, ARLA 32) for trucks: nozzle, hose assembly and adapter (with/without anti-theft protection) for the vehicle AdBlue® filler inlet to avoid misfuellings.

GasGuard LPG nozzle GG30:

GasGuard LPG nozzle GG30:

with Splashguard

ERV-GR Green Band rubber expansion joint, Biogas entergy plant

ERV-GR Green Band rubber expansion joint, Biogas entergy plant

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid
