ELAFLEX Hamburg, large new narrow aisle stock 2018 for hoses

HD 100 C, HD 10 sensing hose

Aircraft Dispenser with DN 100 hose (spiralised marking) and a sensor hose to control the hydrant system.

ZVA Slimline 2 GRVP, Coax hose assembly

With integrated vapour insert EK 096. For dispensers with single fi lling point or dispensers with integrated 'On / Off ' valve. The vapour return rate is regulated within the dispenser.

Scuffguard for ZVG 2 nozzles: type EA 866

with integrated fuel grade identification to European rules and large advertising/printing surface. Available in orange and black

Compact Line HD 50, Hose Reel Spring Rewind

FEP 5O, MannTek DDC-M 5O SS

ZVA 25 with red scuffguard and Slimline hose assembly

HIFLO-Automatic nozzle DN 25 (1"), flowrate up to 140 litres/min.

ELAFLEX Hamburg

Example of a marking of test data (hydrostatic test) of a hose assembly

Stainless steel couplings with PFA coating, type "...SSE"

Surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

TSG 3" Rg

tank truck sight glass type TSG 3", one end TW tank truck fl ange according to DIN 28459, other end male thread

M 16-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, red.

ZVG 2 ACME nozzle for L.P. Gas / Autogas

pulling lever and latching, possible with one hand

ELAFLEX Hamburg

Assembling Coax hoses

Aljac Closed Circuit Sampler (CCS)

Hydrant-dispenser

KR 50

bend with VK 50 x MK 50, 60°

Elaflon PTFE 38, AMKC 38

Universal hose, Elaflex Camlock quality coupling

Offshore FSRU (Floating Regasification Unit), Unloading Gasoil Sludge

TW hose assemblies, reels

HD-C, airport depot

Underwing couplings with HD-C hoses for bottom loading of aircraft refuellers at airport depot

VR Hose Reel Spring Rewind, ZVA Slimline 2 GR blue

for active Vapour Recovery (VR) for gasoline fuels

ERV-ROTEX expansion joint, inhouse emergency power generator

Production MannTek, Sweden

ERV-BR 100.16

BR Rubber Expansion Joint, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products. Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e. g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR.

ZVF 25 overwing refuelling

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Sand casting: melting

Cabinet of road tanker:

hose tubes, TW hoses, TW couplings

Nozzles and hose assemblies for the forecourt

ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies

ELAFLEX Hamburg

Coax hose assembling

Fluorflex FXD universal hose assemblies

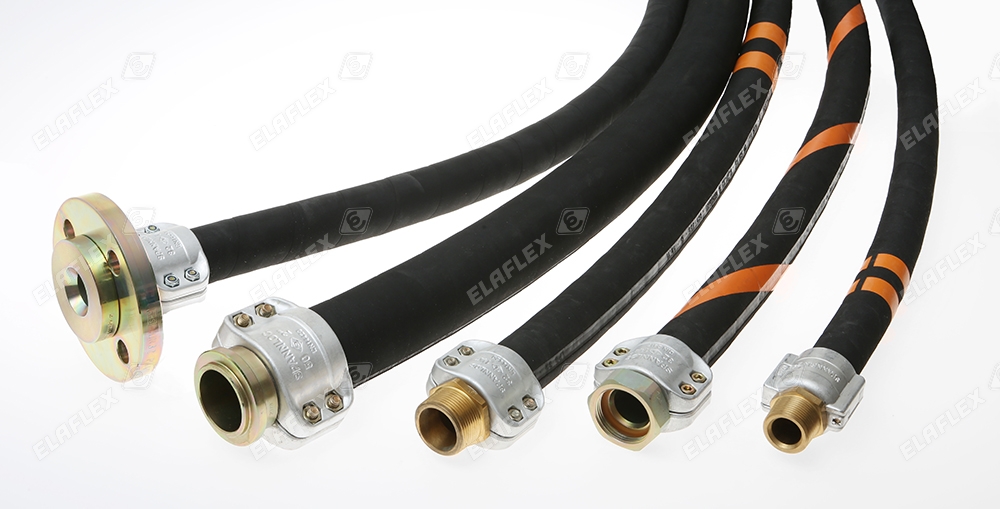

with inner corrugation for maximal flexibility. Picture 1

V 19-3/4" NPT

Male ferrule hose coupling EN 14424 stainless steel, reusable. Slimline 19 SF (sulphur free) hose, black.

Double Closing Safety Swivel Break

SSB 25 DC
