KWZ x VK 80

Rail car adapter with TW male coupling

Elaflex refuelling equipment:

Quality is in the detail.

FGN 2 St

Flange with male thread, steel zinc plated/chromated

MannTek DDC-M150, DDC-V150, DDC-V150 F

Elaflon Plus FEP 25

Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.

Cylinder Valves (Tank Heads)

TH104

UTL 50 universal chemical hose assembly and TW female coupler MKC 50 SS

Section view of a DS 2 swivel

VK 80-2" AG Ms

TW male coupling brass, with reduced male BSP connection (special type)

Forklift refuelling with LPG (L.P. Gas, Autogas)

GasGuard nozzle, LPG 16 hose; dispenser

Hoses for Liquefied Petroleum Gas / Autogas

LPG 13, LPG 16 black/orange, LPG 19

Compact Line HD 50, Hose Reel Spring Rewind

FEP 5O, MannTek DDC-M 5O SS

Ship loading various media - STW 150 and UTS 150 hose assemblies

Terminal / gantry: 'Polypal Oil' hose assemblies for bottom loading of road tankers

Lining UPE - resistant to all petrochemical media, also with high content of aromatics or other aggressive additives; cover CR - oil resistant

Slimline 21 black

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

LTW 75 hose assembly

with MannTek DDC Dry Disconnect Coupling; use eg. as connecting hose for heating oil trailers

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Sand casting

ERV-G AF

Suitable for piping systems of aviation refuelling or dispensing vehicles in accordance to EN ISO 1825/EI 1529. Suitable for all aviation fuels.

Camlock hose couplings: system comparison

Easyloc from Elaflex with automatically secured levers.

ZVA Slimline 2 and ZVA Slimline 2 GR, Slimline hose assemblies

Petrol station, Germany

Offset UST filling point, LTW hose assemblies with TW couplings

Operator

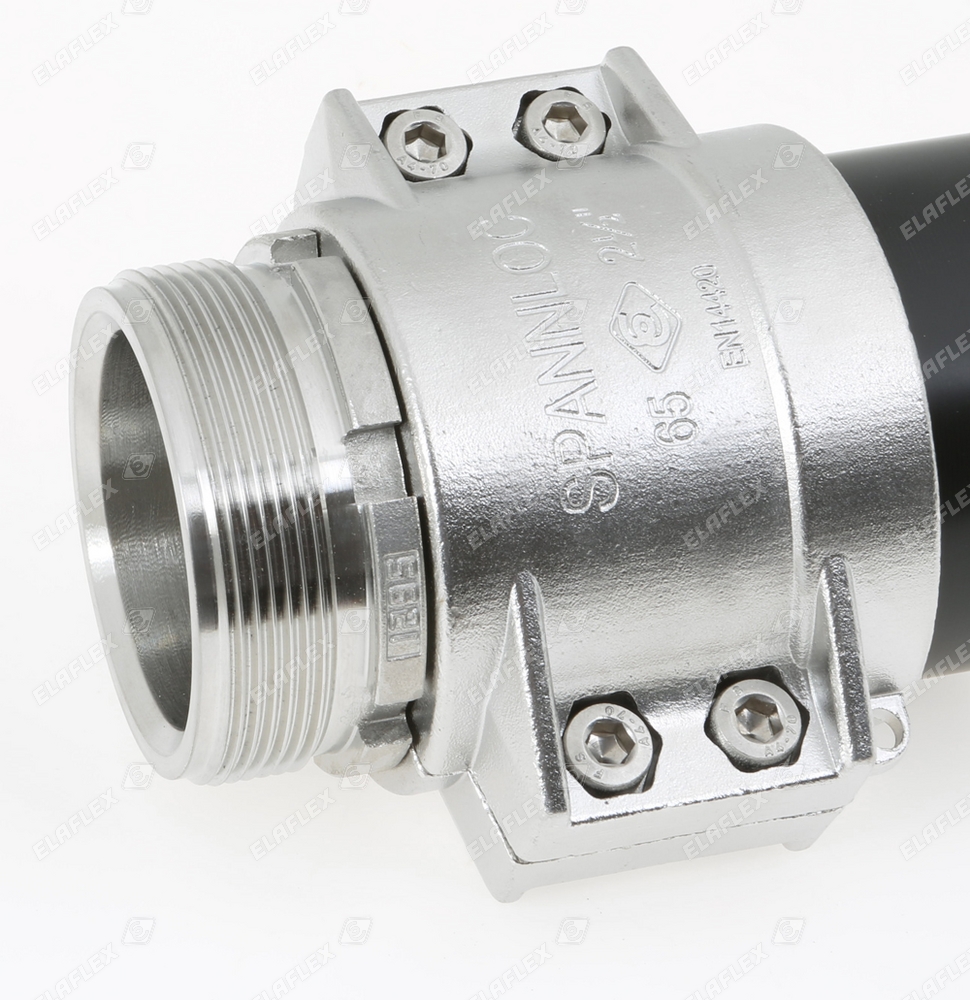

Spannloc hose clamps of stainless steel for chemical hoses

Hose tube of road tanker for chemicals

MK-A 80 SS with active safeguard lever ; VB 80 SS dust plug

LPG Autogas dispenser, ZVG 2 ACME nozzle, LPG 16 dispensing hose

Scuffguard for ZVG 2 nozzles: type EA 866

with integrated fuel grade identification to European rules and large advertising/printing surface. Available in orange and black

SG 3" Rg

Sight Glass with 3" female/male BSP thread, gunmetal

Flexible bronze pipe connector BWO

Installed in manhole of a petrol station underground storage tank (UST). Suction pipes towards the dispenser pumps

MK-A 80 SS, TW female coupler with Active Safeguard Lever, VB 80 SS

SBC-C 50-2"

MannTek Safety Breakaway Coupling with cable release, 2" female BSP connection

ELAPHARM Type EPH 25

electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
