ROTEX 80.16

Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative

ZVA Slimline 2 GR LA (with LeverAssist)

LeverAssist hold-open aid for comfortable refuelling, for countries in which latching is not allowed

MK-A 80 SS

MK 80 SS with active safeguard lever

ELAFLEX Hamburg

ERV pressure testing

ZVA Slimline 2 / ZVA Slimline 2 GR

Petrol station nozzles with (top) and without vapour recovery (below)

Oasis SV104 Sandwich Valve with Air Torque Actuator, for CNG

Adapters / couplers for vehicles fighting dangerous goods incidents:

Plugs and Caps MB 50 SS/Vi, VB 50 SS, VB 100 SS, BK 2" SS/Vi, BK 3" SS/Vi

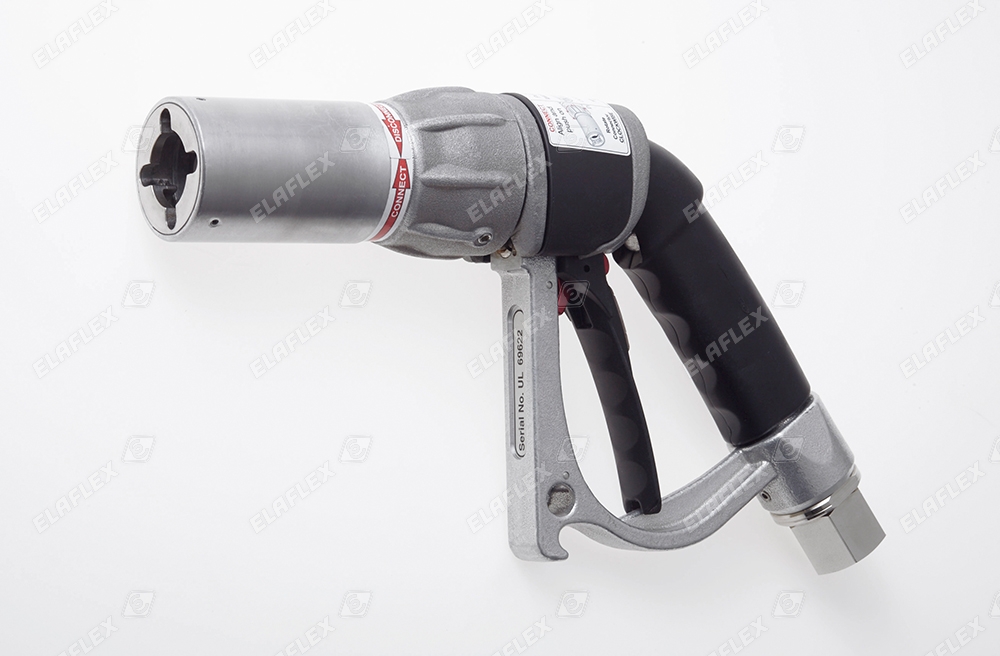

GasGuard LPG nozzle GG1E

eoconomic type for industrial refueling / attended refueling. Release volume on valve closure: 1,9 cm³.

Equipment for vehicles fighting dangerous goods incidents:

PTFE 50 Universal hose assemblies - with TW couplings of stainless steel

Double Closing Safety Swivel Break

SSB 25 DC

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 ACME nozzle, LPG 16 hose

DAC-M 65

MannTek Dry Aviation Coupling

Oasis DMI Dispenser Manifold for CNG

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

ERV-G 1000, ERV-BR 300

Composite hose Danoil 7GG, DDC-M Dry Disconnect Coupling, airport depot

Colour production: manifold

UTS and FWS hose assemblies

UTS hose assembly with AMKC 25 SS/SS

'Camlock' stainless steel coupler to EN 14420 - 7 with hose tail and Spannloc stainless steel clamps

Cargo loading of a tanker with petroleum based products; FHD hose assembly

Picture courtesy of Macoil International, Gibraltar

Camlock couplings:

stainless steel female and male couplings to EN 14420 - 7

VB 50 P, VB 80 P

TW dust plugs of Polyamide

Universal hose assembly UTD 19 with MC 19 SS

RS 1 x 11/4 SS

Reducer Female/Male

ERV-G ... TW

Aircraft refueller

Polypal Clean hose assembly

Pharmaceutical production

HB 50 ST tar spraying hose

Pressure hose for road construction machines, especially for hot bitumen and heavy heating oil. Temperature range: - 25° C up to + 220° C. Meets EN 13482, Type 2 SB/B (DN 19 and DN 32 analogue).

Fluorflex FXD universal hose assembly

extremely flexible PTFE hose with maximum bending radius

ERV-G 100.16

YELLOW BAND Rubber Expansion Joint suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

MC 100 SS female threaded hose coupling with Spannloc clamps

with universal hose UTL 100

Safety Swivel Break SSB 16 SS of stainless steel f. ZVA HV for AdBlue®

new design
