AMK 25 EASY
EASYLOC ('Camlock' stainless steel coupler to EN 14420 - 7 for male adapters AVK with captive seal) with lever arrest
M 16-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, red.
From Terminal To Nozzle
Elaflex refuelling equipment
Oasis company building
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapters TW to EN 24420-6 MK 50 SS/Vi x MK 50 SS/Vi, VK 80 SS/Vi x VK 50 SS/Vi, VK 50 SS/Vi x VK 50 SS/Vi, MK 80 SS/Vi x VK 50 SS/Vi
Elaflex nozzles, hose assemblies and Rubber Expansion Joints for petroleum based products
ZVA Slimline 2 and ZVA Slimline 2 GR with sight glasses, Slimline hose assemblies
Petrol station, Czech Republic
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Plettenberg factory 2
EA 866 scuffguard orange with ZVG 2 ACME nozzle
The scuffguard for LPG / Autogas nozzles shows the LPG fuel grade marking required by standard, and offers a large advertising space
ERV VSR:
ERV with vacuum support ring. Ring of AISI 316 Ti , used when the vacuum resistance of the chosen ERV is not sufficient.
ELAFLEX Hamburg
Cutting area for dispensing hose
TWD-W coupling seal
NBR white
Elaflon Plus FEP 25
Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.
DCC Dry Cryogenic Coupling for LNG
DDC-M 50-2" SS
MannTek Dry Disconnect Coupling, DN 50, stainless steel
LNG ship bunkering
DCC 100 Dry Cryogenic Coupling, CBC 100 PERC Cryogenic Breakaway Coupling
Offshore FSRU (Floating Regasification Unit), Unloading Gasoil Sludge
TW hose assemblies, reels
Oasis Engineering Ltd, New Zealand (CNG refuelling products)
Production Picture 18
MKC 75 SS
TW female one-part coupler, stainless steel
Elaflex hoses
TW, PTFE, LPG, FEP, UTS, PCS, CHS

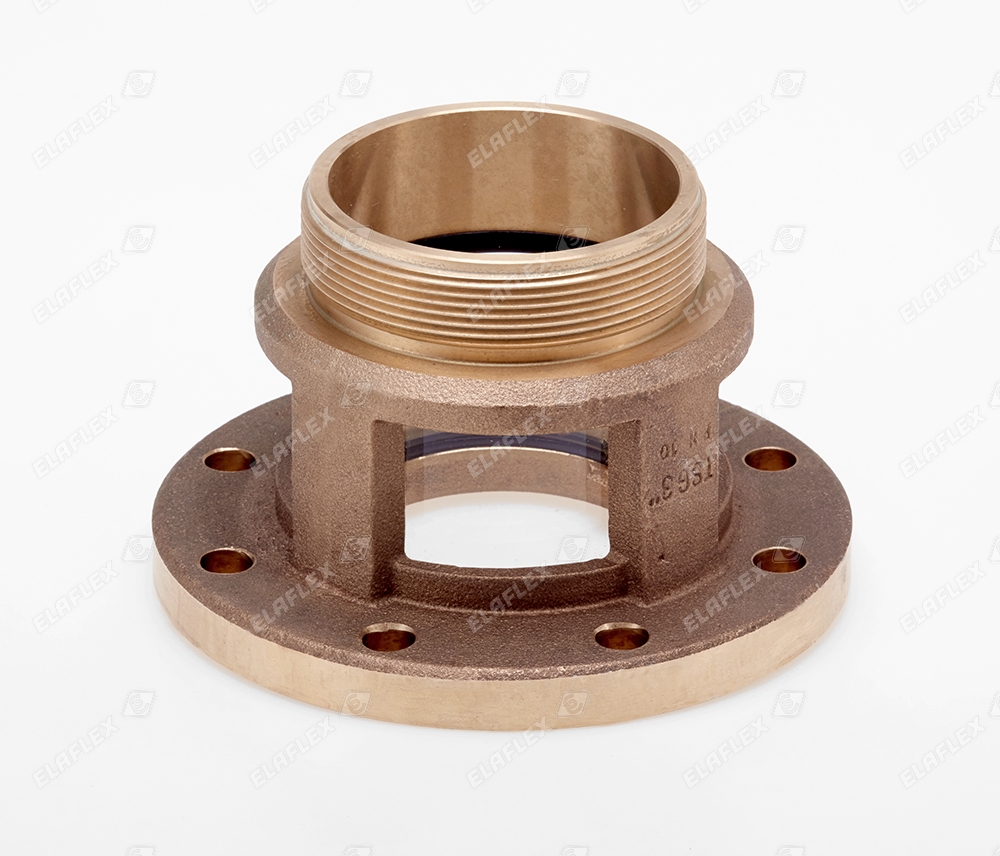

MK 80 Ms, Sight Glass with Rods
Customer protected special design ZVA Slimline 2 GR nozzle
RMX 32 SS / SS
Spannloc threaded hose coupling with foodstuff thread / Spannloc of stainless steel
RVX 32-11/4 SS
Hose coupling with male foodstuff thread and Spannfix clamps
Oasis BV706 ball valves with Code 62 flange connection, for CNG
LMD 25 Blue Band solvent hose
without helix
Filling of Heating Oil Tanks: Adapter KR 50-21/2"
for difficult to reach filler inlets
EK 145 Product Badges for ZVA nozzles
ERV TA:
ERV with white PTFE lining. Used when the chemical resistance of the chosen ERV type is insufficient. Resistant to all commonly used liquids. Electrically isolating, therefore not suitable for flammable liquids in Ex-Zones. Admissible working temperature of expansion joint has to be observed. For maximum pressure of 6 bar – not suitable for vacuum.
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose, denomination of the components (German)
