ERV-R 100.16

RED BAND Rubber Expansion Joint for water, drinking water (DVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature range - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.

Elapharm foodstuff fittings DIN 2817

GasGuard LPG / Autogas refuelling equipment

Nozzles, nozzle boot for dispenser installation, LPG 16 hose assemblies, Safety Break ARK 19

LNG Refuelling

LNG Nozzle 'N-LNG' coupled to fuel, LNG 25 fill hose assembly with cover hose, bonding cable

SD 38 Pyropal

Steam hose with steel braids for wet saturated steam up to 18 bar (210° C) and hot water up to 120° C. For cold water up to 25 bar. Minimum burst pressure 180 bar (1 : 10 safety factor

Ship bunkering with STW hose assembly and MannTek DDC Dry Disconnect Couplings

Scandinavia

LNG Refuelling

N-LNG Nozzle, Soft-Stop-Position

Hose Reel Spring Rewind, ZVA Slimline 2 blue

SVC 50-2"

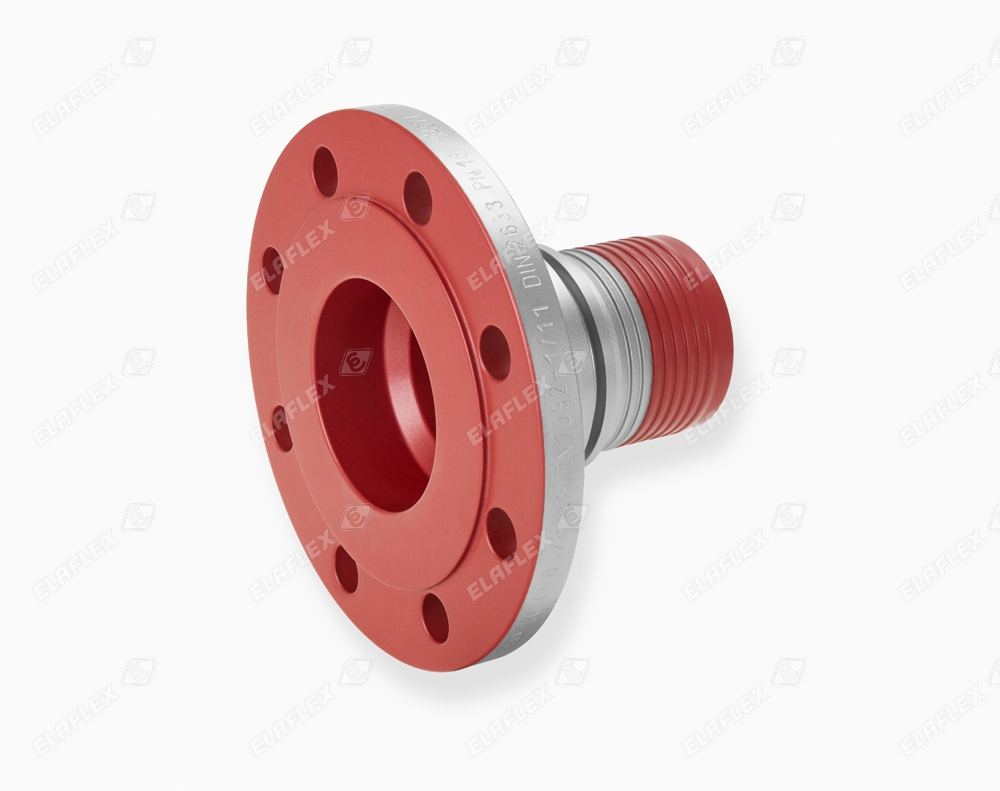

Male hose coupling of steel with Spannloc clamps

Polypal Clean hose assembly

Pharmaceutical production

Fluorflex FXD 50

PTFE / EPDM Universal helical hose - high performance chemical hose to DIN 26054, combining the universal chemical resistance of PTFE with exceptional flexibility and tight bending radius.

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Machining spouts

Ship loading with high aromatic content fuel > 50%

UTS 150 hose assembly

Construction site / on site refuelling:

ZVA 25 (automatic nozzle), road tanker

Slimline 21 red

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Vehicle refuelling with LPG (L.P. Gas, Autogas, Propane)

GasGuard GG1 ACME nozzle

Transport protection for flanged fittings

M 16-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, green.

ELAFLEX Hamburg

CAD construction

ERV-G 100.16

YELLOW BAND Rubber Expansion Joint suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

ZV 400, HD hose assembly on road tanker

TW coupling wrenches of brass or steel

EW K 50 Ms, EW K 80 Ms, EW K 100 Ms, EW K 50 St, EW K 80 St, EW TWS 50, EW TWS 80

Camlock couplings:

stainless steel female and male couplings to EN 14420 - 7

ZVG 2 ACME nozzle for L.P. Gas / Autogas, LPG 16 hose assembly

Compact Line HD 50, Hose Reel Spring Rewind

FEP 5O, MannTek DDC-M 5O SS

Unloading petroleum products at the service station (road tanker to UST)

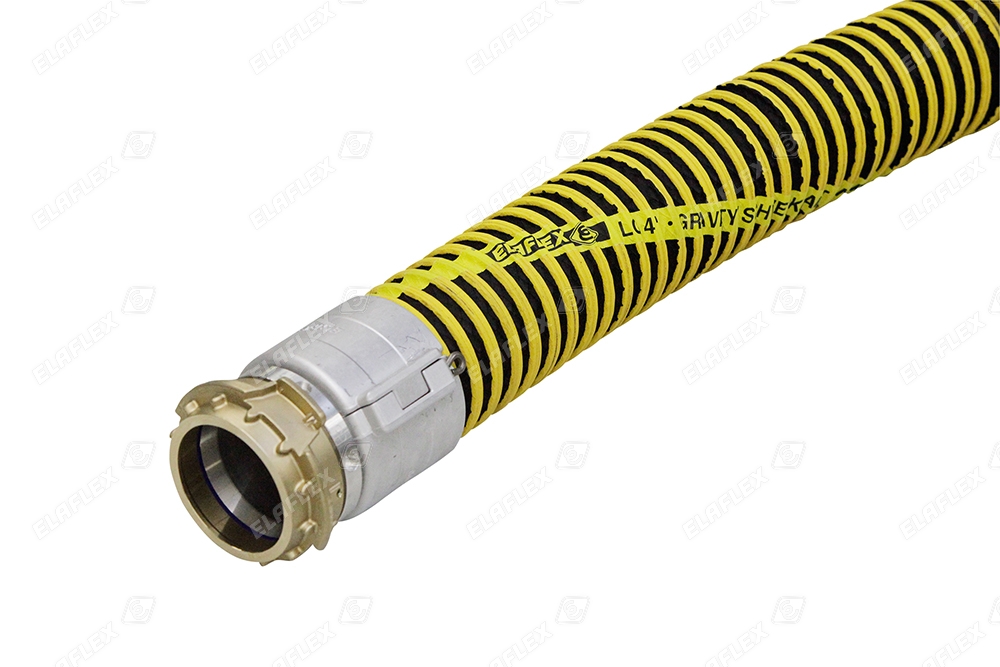

Connection offset UST filling point: LG 3" hose assembly for gravity discharge, LTW 50 hose assembly for vapour balance

ZVG 2 ACME nozzle for L.P. Gas / Autogas

LPG nozzle for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l / min. Working pressure 25 bar. Test pressure 40 bar. Burst pressure > 100 bar. Temperature range - 25° up to + 70° C, 'LT'-Type down to - 40° C.

ElaSil® Silicone hose

ZVA Slimline 2, black, guard 3 - detail view with new hold-open latch

ERV-G

Ship engine room: 2 Yellow Band Expansion Joints mounted together for extra permissable movement
