Ship cargo loading with FWS-PP composite hoses

ZVA Slimline 2 nozzle, yellow

ERV-G 100.16

YELLOW BAND Rubber Expansion Joint suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

HD 38 C, VX 38 - 11/2 Sn

Hose assembly for aircraft refuelling, fitting in contact with medium tin plated

Nozzles and hose assemblies for the forecourt

ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies

VSR vacuum support ring for ERV Rubber Expansion Joints

to increase vacuum resistance of a chosen ERV type. Open ring of stainless steel 1.4571

ELAFLEX Hamburg, marking tested hose assemblies

Polypal Clean, MX 50 SS

Sand casted products to your design

In our modern foundry we can produce complex sand casted aluminium, bronze and gunmetal products to your requirements.

SD 38 Pyropal

Steam hose with steel braids for wet saturated steam up to 18 bar (210° C) and hot water up to 120° C. For cold water up to 25 bar. Minimum burst pressure 180 bar (1 : 10 safety factor

Airfield fixinstallation: Hose Reels JET, AVGAS

Type HD-C, aviation hose, ZVA 32

ElaSil® Silicone hose assemblies DN 13-102

For for high media purity requirements, easy to clean. Suitable for Pharma, foodstuff and cosmetics industry. Homogeneous hose construction of platinum cured, translucent and phtalate free Silicone (FDA / USP), resistant to kinking and highly flexible. Large temperature range -60° C to +200° C. Available as complete hose assembly with crimped fittings, DN 13 to 102. Here: DN 25 with Camlock Cam Locking Coupling and Triclamp connection

AMB 50 SS

'Camlock' stainless steel dust cap to EN 14420 - 7 for male adapters AVK with captive seal

ERV-G Yellow Band rubber expansion joint, exhaust sytem of a yacht

ELAPHARM Type EPH 25

electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).

Oasis TM106 Trailer Unloading Manifold, for CNG

ZVG 2 DISH

Nozzle for L.P. Gas / Autogas, with 'Italian' Claw Coupling. Pictured: coupling open / closed

Cabinet of road tanker:

MK 80-32 TW coupler with bent lever, VB 80 P dust plug

DDC-K ADR:

DDC Dust Caps with Pressure Relief Valve to ADR Requirements. These pressurized dust caps PN 10 of aluminium for DDC male adapters on road tankers are much lighter than the PN 25 versions of stainless steel.

CSB 21 Coax Safety Break: Separation

TW Couplings with Isolation for electronic Cross-Over Prevention Systems

see Information 4.12

Tank container filling coupling: MK 80-32 SS with VB 80 SS

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

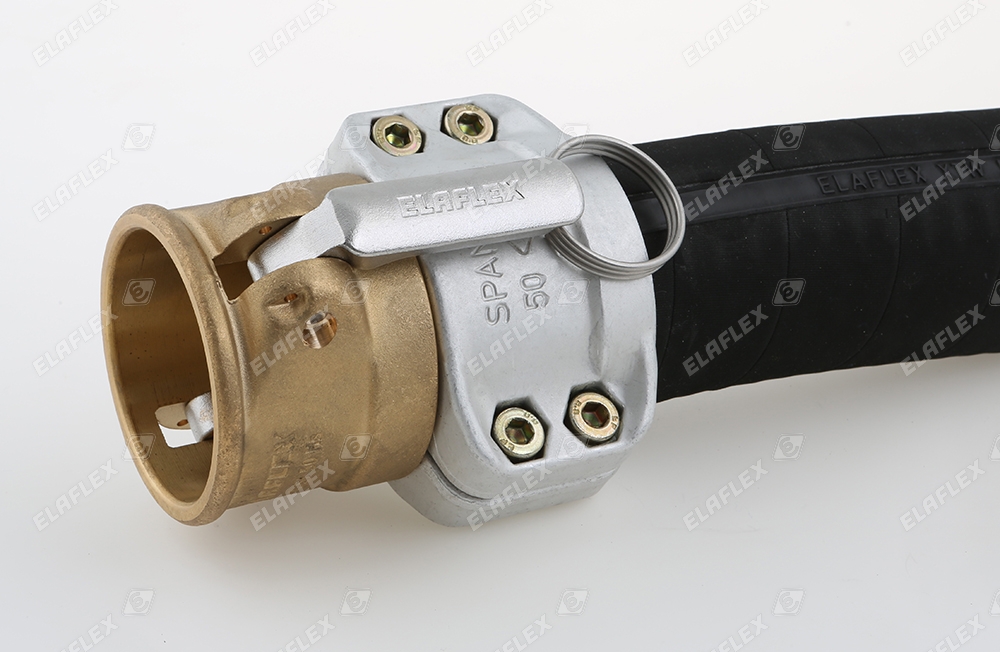

AVKC 50 Ms

'Camlock' brass steel male part to EN 14420 - 7 with hose tail and Spannloc clamps

FWS 50 PTFE

Composite hose with PTFE lining

PAL hoses for the chemical industry

Oasis TH Tank Head Valves, CNG trailer

TGN 4" Al tank truck flange with threaded nipple, VK 100 Ms male TW coupler, MB 100 Al dust cap, chain

GSD 50 PU

Coupling seal for TW couplings, polyurethane

Ball Valve 350 bar

for Hydrogen

Road tanker with hose reel -

Quick change system between ZV 500 and ZVA 32 nozzles via DDC Dry Disconnect Coupling

ERV-G 80.TW

ERV-G Rubber Expansion Joint with TW flanges DIN 28460 for installation to tankers
